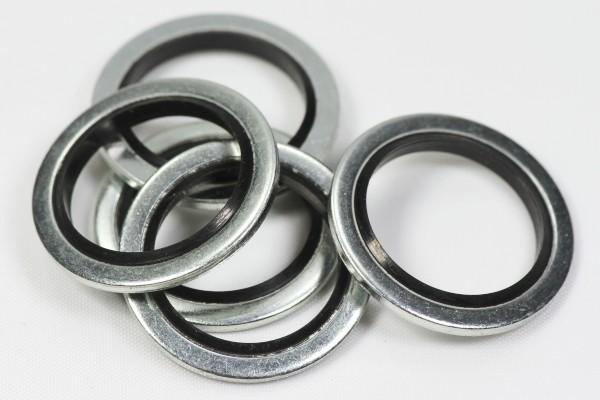

Bonded seals help joints prevent leakage and provide cushioning at the bolts
What is a bonded seal used for?
Bonded Seals consist of an elastomer sealing lip vulcanized to the edge of a metal washer. They are used to seal bolted connections and mounting elements in oil and gas applications such as pipe connections and couplings. When the bolted connection is tightened, the sealing lip is pressed against the flat surfaces.
| Material | Stainless steel + nitrile rubber |
| Article No. | Combination washer M4-M60 |
| Function | The hole is sealed |
| Scope of application | automobile, bearing, pump, valve, chemical pipeline |
| Features | High temperature resistance, wear resistance, corrosion resistance, high pressure resistance |
| Thickness | 2 (mm) |
| Inner diameter | 4-60 (mm) |
| Outer diameter | 7-75 (mm) |
| Operating temperature | -25 to 100 (℃) |
| working pressure | ≤40 Mpa |
| Medium | Hydraulic oil |
| advantages | Ability to withstand a broad range of temperatures Dependable high and low-pressure sealing Reduced bolt torque without losing tightening load Automatic installation Superb liquid and dust protection |
|
|
